The big picture

  1. Name one faultWrite the predicted failure pattern.
  2. Change one partLock data, budgets, and evaluation.
  3. Keep every resultPositive, null, and negative all count.
An improvement is credible when the intervention tests a mechanism and a falsifier could make the explanation lose.

A tiny story: the mechanic who changed everything

A car pulls left. The mechanic replaces the tires, steering, engine, road map, and driver, then the car goes straight. Something helped—but the repair taught us almost nothing.

A world-model system has the same separable parts: data and preprocessing, representation, action-conditioned dynamics, planning cost, CEM search, and execution/evaluation. If all move together, a higher success number cannot tell us which idea worked.

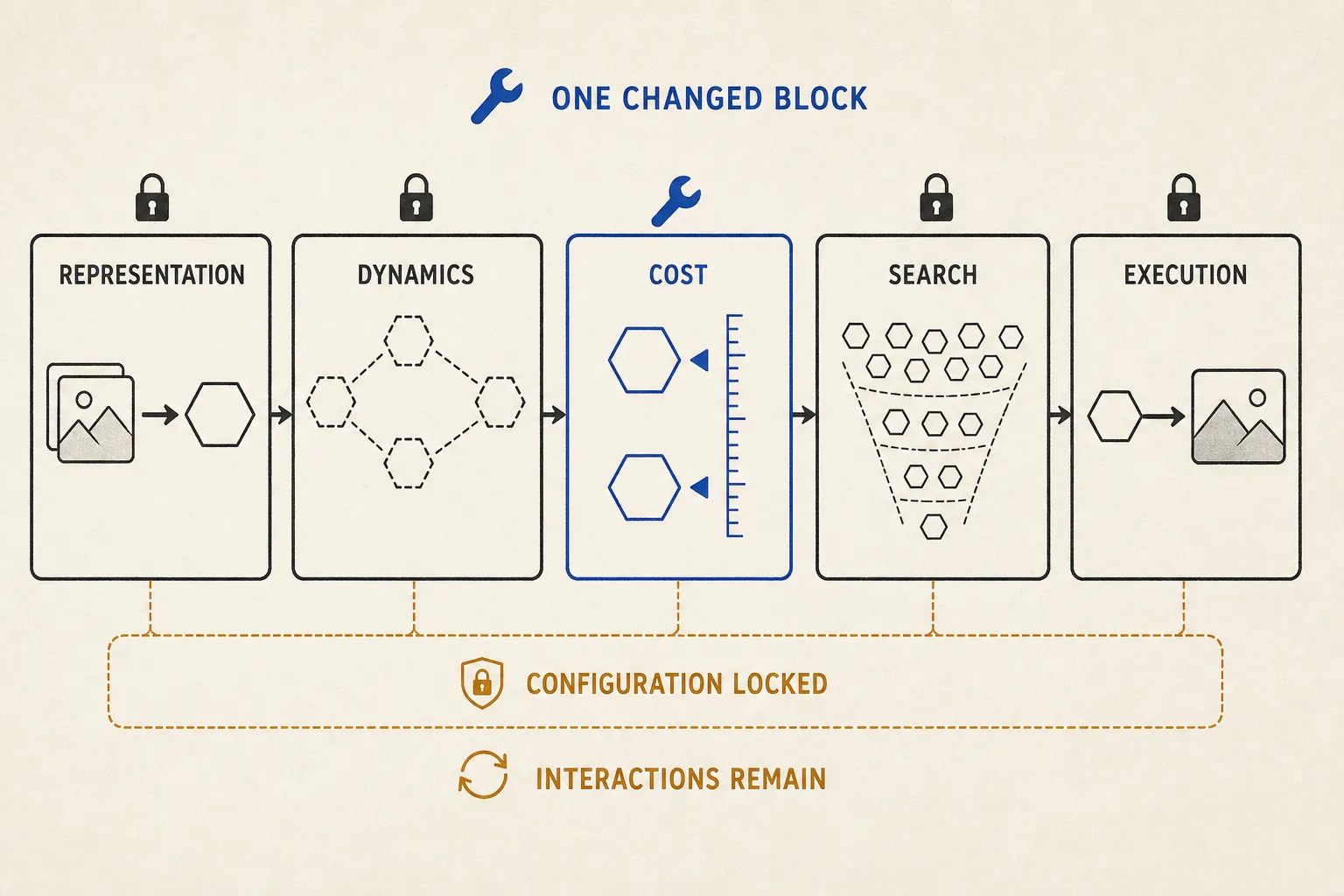

A LeWM control system keeps representation, dynamics, search, and execution locked while only the cost block changes.

One locked comparison localizes a claim. It does not prove the same repair works in every environment.

The technical backpack

Write the claim before running:

  1. Failure mechanism: for example, terminal Euclidean cost ranks across-wall endpoints too favorably.
  2. Predicted interaction: a reachability-aware cost should help wall-separated goals more than matched open-room goals.
  3. Falsifier: the gain stays equally large after the wall is removed, disappears with oracle dynamics, or comes only from extra CEM budget.
  4. Locked contract: dataset/hash, preprocessing, encoder, predictor, checkpoint rule, seeds, starts/goals, action budget, CEM population/elites/refinements, executed prefix, episode count, and metric.

Use an ablation ladder: baseline → add the proposed component → remove it → shuffle or randomize its signal → sweep its strength. Match both parameter count and compute where possible. Training budget and planning budget are separate currencies; extra epochs cannot silently pay for fewer candidate plans, and extra CEM candidates cannot be called a representation gain.

Oracle substitutions localize the bottleneck:

DynamicsCostWhat the cell asks
learnedlearneddoes the full system work?
oraclelearneddoes failure remain when rollout error is removed?
learnedoracledoes a better ranking rescue the same model?
oracleoracleis search/execution itself limiting under simulator knowledge?

Oracle state, shortest path, or dynamics are simulator-only diagnostic tools. An oracle gain shows headroom, not that the learned replacement is attainable.

Try to break the idea

Use matched TwoRoom layouts: one has the separating wall and doorway; one removes the wall. Reuse the same start, goal, candidate bank, model checkpoint, and budgets. A topological-cost hypothesis predicts a larger improvement in the wall case. If the “repair” gains equally in open space, it may simply rescale scores or alter optimization.

Report distributions across seeds and goal types, not one best run. Save representative trajectories and classify failures: encoder aliasing, action-insensitive prediction, self-fed rollout drift, wrong cost ranking, CEM miss, or execution mismatch. A null result means “no supported gain under these conditions,” not “the idea can never work.” A negative result can be the strongest clue when it matches the predicted failure boundary.

Experiment receipt and evidence boundary

  • Sources that motivate diagnostics: LeWorldModel v3, RC-aux v1, TwoRoom reproduction v1, VIScore v2, ACPC v1, Objective Bottleneck v1, DA-LeWM v1, and stable-worldmodel v1.
  • Frozen public snapshots: LeWM 8edfeb3, RC-aux ecb4496, tinylab efa9e5d, VIScore bbb60fc, ACPC 90d4276, stable-worldmodel addbab4, release 0.1.1. DA-LeWM code was not identified.
  • Cited diagnostic versions span 2026-08-10 through 2026-08-19; cutoff is 2026-08-20, Asia/Tokyo. Apart from the stated TwoRoom reimplementation, source evaluations are author-reported. The experiment proposed here remains a tutorial construction until someone runs it.
  • Permitted conclusions are “isolates within this design,” “supports the mechanism under locked conditions,” or “failed to improve here.” Avoid “proves the cause,” “learns universal reachability,” “the platform guarantees fairness,” or “TwoRoom establishes robotics generalization.”

Three quick questions

  1. Why is changing representation, predictor, and planner together scientifically weak?
  2. What different bottlenecks do the four oracle cells isolate?
  3. What result in the wall-removal test would weaken the topology explanation?
