The big picture

  1. Name the worldtask, data, revision
  2. Name the clockticks, steps, horizon
  3. Name the budgettrain, search, evaluate
  4. Stamp the sourcepaper ≠ code ≠ run
A score needs a passport. Without its conditions, it cannot cross into another experiment.

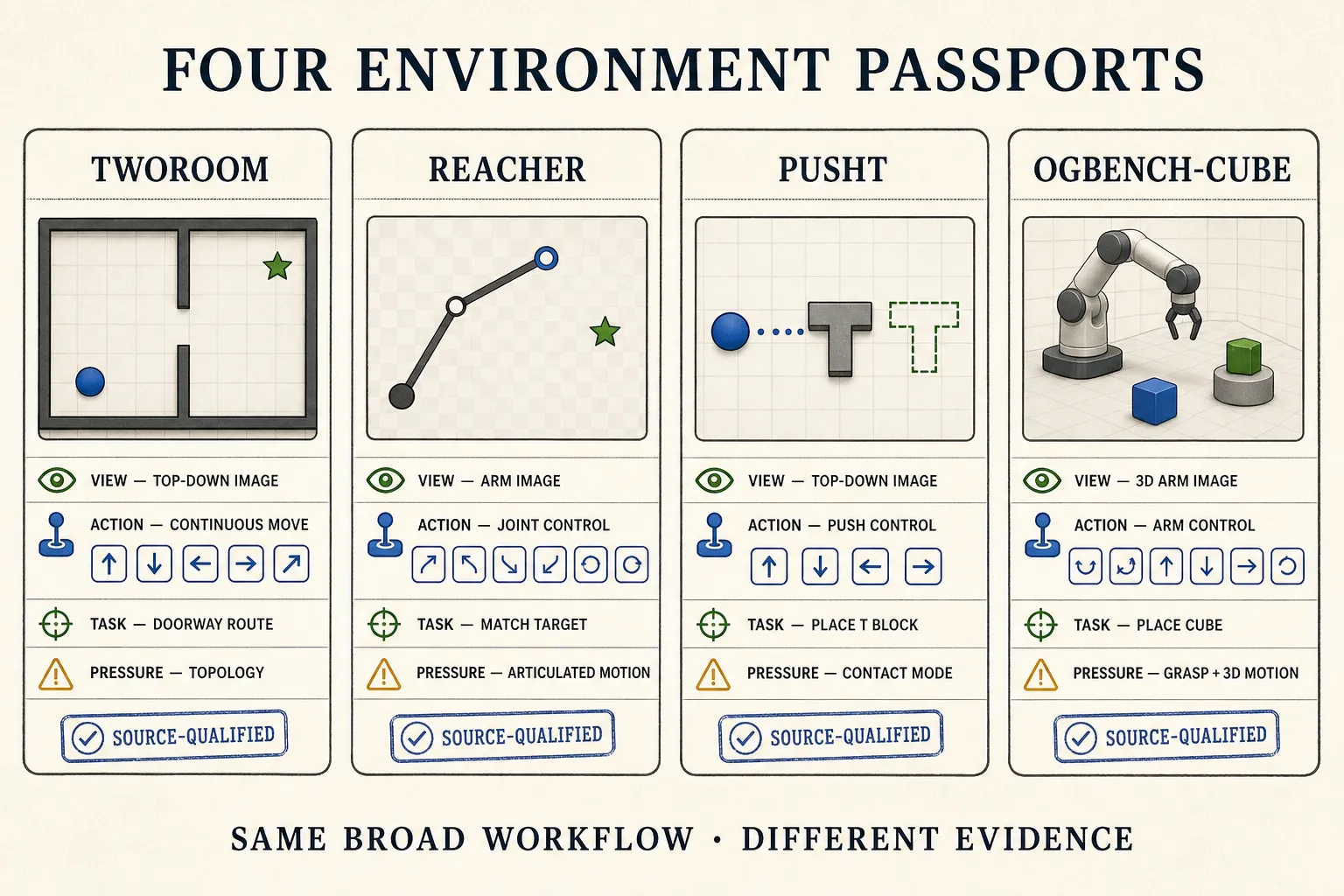

Four benchmark passports keep different task pressures visible.

A tiny story

Four teams say, “We tested a world model.” One crossed a doorway, one moved a two-joint arm, one pushed a T, and one picked up a cube. The sentence is true but too small to compare.

A configuration passport records the world, artifact, observations, action grouping, history, training, planning, execution, goal, metric, seeds, and compute. If a field cannot be verified, write not verified. A blank invites investigation; a guessed value manufactures evidence.

The configuration backpack

Four benchmark passports

WorldPaper cardFrozen-code cardPressure and boundary
TwoRoom10,000 episodes; average 92 environment steps; noisy door-then-goal heuristic; 10 epochs; history 1; non-PushT CEM at most 10 refinementstworoom.h5; pixels/actions/proprioception; frame skip 5; global history 3, max 100 epochs; evaluation 50 episodes, goal offset 25, action budget 50, horizon 5, executed prefix 5; shared CEM 30 refinementsDoorway topology exposes straight-line latent shortcuts. A simple 2-D sandbox does not represent all world modeling.
Reacher10,000 episodes × 200 steps; Soft Actor-Critic collection; 10 epochs; paper history not explicitly verified in the cited statementreacher.h5; pixels/actions/observation; frame skip 5; global history 3; swm/ReacherDMControl-v0, qpos_match; evaluation 50, offset 25, budget 50, horizon/prefix 5/5Simulated articulated control, not general robotics evidence. Success tolerance and full environment behavior require the resolved platform revision.
PushT20,000 expert episodes; average 196 steps; 10 epochs; history 3; 300 candidates, 30 elites, initial variance 1, horizon 5, at most 30 CEM refinementsglobal history 3, max 100 epochs, SIGReg weight 0.09; YAML names pusht_expert_train.lance; inspected public artifact/README use compressed HDF5; evaluation offset 25, budget 50, horizon/prefix 5/5, frame skip 5Contact location, orientation, and push-without-pull history matter. Scores do not transfer to a real robot.
OGBench-Cube10,000 episodes × 200 steps; benchmark heuristic; 10 epochs; history 3; non-PushT CEM at most 10 refinementsogbench/cube_single_expert.h5; pixels/actions/observations; frame skip 5; swm/OGBCube-v0, single cube, 224-pixel rendering; evaluation 50, offset 25, budget 50, horizon/prefix 5/5; shared CEM 303-D motion and grasping differ from “PushT in 3-D.” Privileged fields set the environment goal; they are not evidence that original LeWM training receives privileged state. Success tolerance remains revision-bound.

One model step groups five environment actions in these frozen cards. A five-step horizon therefore spans 25 environment actions. The same cards execute all five model steps before replanning. That is one MPC timing choice, not a universal LeWM constant.

TwoRoom also has a version-history trap. An independent reproduction audited paper-side offset 100 and budget 150 against repository 25/50. Those 100/150 values belong to LeWM v1/v2 history; current v3 Appendix F.1 states 25/50. The reproduction further reports, for its TwoRoom reimplementation only: gather every action in each frame-skip block, derive action-encoder input width programmatically, use ImageNet pixel normalization, and z-score actions. Do not promote those audit findings into universal benchmark rules.

Never average paper and code

FieldPaper v3 labelFrozen-code label
training duration10 epochs for four named tasksglobal maximum 100
TwoRoom history1global default 3; no data override
SIGReg trade-offdefault 0.1 unless specified0.09
non-PushT CEM refinementsat most 10shared solver 30
PushT data name/formattrajectory description following DINO-WMLance filename; inspected public artifact compressed HDF5

Neither column “wins.” The paper describes the reported condition; the frozen repository describes what that revision resolves without extra overrides. A real run adds a third label: resolved run, with every inherited value printed and archived. Original LeWM v3’s method card also says one shared trainable encoder, connected targets, no stop-gradient, EMA teacher, or pretraining; changing that belongs on the run passport.

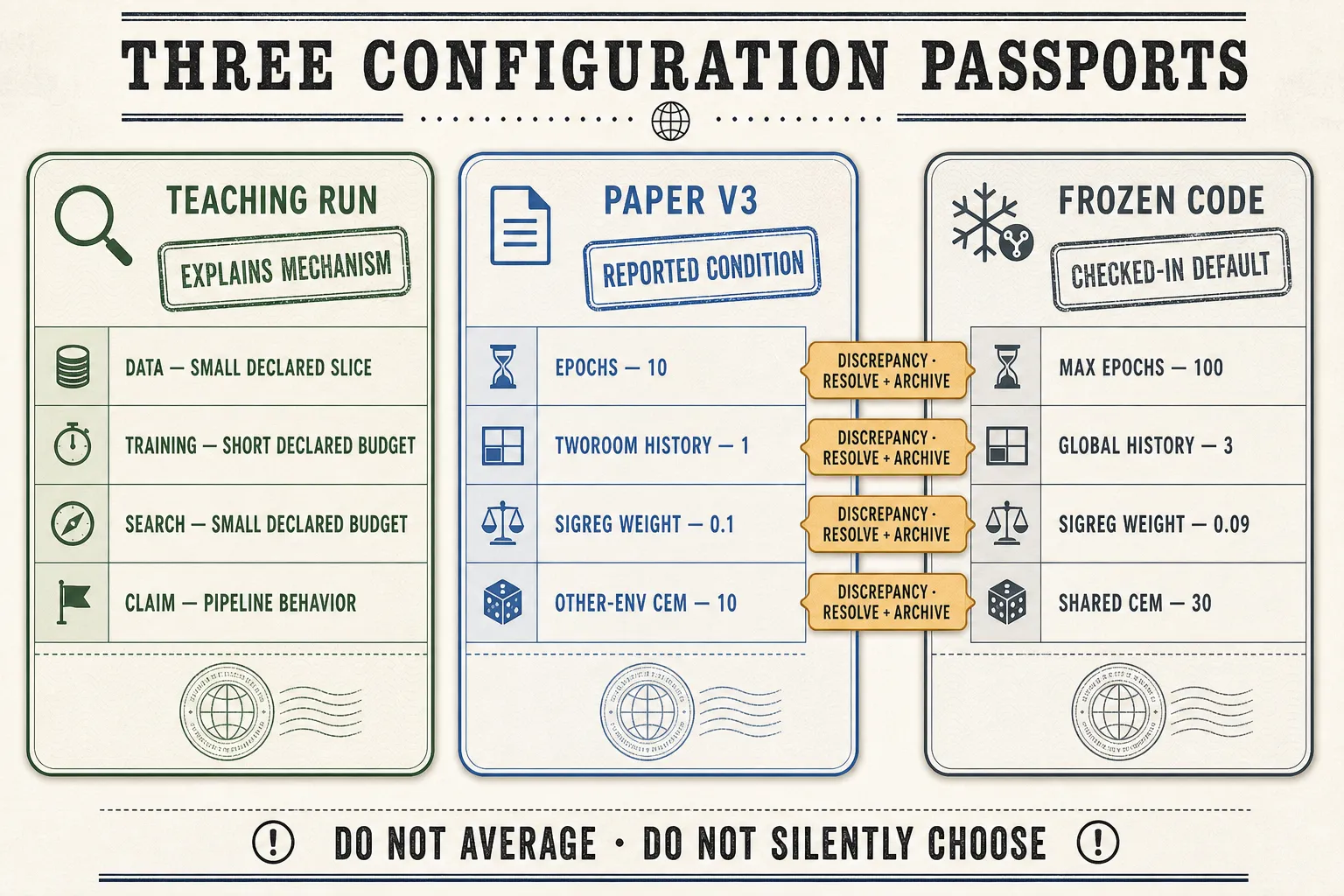

Teaching, paper, and frozen-code passports stay separate.

Three useful run cards

A teaching run is a cheap, transparent mechanism check. Use an episode-disjoint slice that still contains door crossings or varied contacts; shorten capacity or budget if needed; retain action-swap, latent-spread, one-step, self-fed rollout, CEM-trace, and execution diagnostics. Label every changed field TEACHING, never PAPER.

choose one teaching purpose
freeze data slice, episode IDs, revisions, and seed
resolve every inherited value
run data -> forward -> rollout -> search -> execution gates
archive the resolved card with logs and outputs

A paper reproduction locks the cited task, data, history, training, model, planner, baselines, seeds, and evaluation, then records every discrepancy. Keep three levels distinct: (1) load a pinned artifact and obtain finite outputs, (2) evaluate it on locked episodes and planner budget, (3) retrain across declared seeds and compare the stated statistic. Passing level one does not imply level three. Hydra can compose today’s config; it cannot recover an unarchived historical override, dependency, GPU stack, or conversion.

A single-GPU adaptation first records GPU/memory, software, precision, wall-clock, storage, and latency. Separate training budget, model-evaluation budget, and planning budget. Smaller batch can change SIGReg’s batch statistic; fewer projections change its approximation; shorter history changes information; fewer CEM candidates/refinements change search; shorter horizon changes the control problem. These savings are not equivalent, and a changed card cannot inherit a paper score.

The trick that fools us

Run A uses a pretrained encoder, 300 candidates, 30 refinements, five seeds, and same-trajectory goals. Run B trains end to end, uses 64 candidates and 5 refinements, one seed, and broader-split goals. Both report 80%. These are deliberately hypothetical cards, not descriptions of original LeWM v3.

Lock artifact, episode IDs, preprocessing, goal rule, success definition, time abstraction, model, training compute, action/search budget, seeds, and statistic; vary one named factor. Equal scores still do not prove equal mechanisms—inspect rollout, cost ranking, and failure distribution.

Evidence receipt

LeWorldModel v3, especially Appendices D–F, and frozen official code 8edfeb336732b5f3ce7b8b210d0ba370a09e2cac support the paper/code cards. TwoRoom independent reproduction v1 and its tinylab artifact support only their stated TwoRoom audit. Evidence cutoff: 2026-08-20, Asia/Tokyo.

Allowed claim: the four tasks share a broad pipeline but have different pressures, provenance, and source-qualified settings; documented paper/code discrepancies exist. Complete-suite independent reproduction, universal hyperparameters, and score transfer are not established.

Quick check

  1. Why must paper, frozen-code, and resolved-run history stay in separate boxes?
  2. In the cited frozen timing, how do five environment ticks, horizon five, and executed prefix five relate?
  3. What must be locked before two identical success rates become comparable?
