Appendix G — Reproduction Checklist

The big picture

A tiny story: the suitcase with one number

A researcher reaches the border carrying a card that says 82% success. The officer asks: Which code? Which bytes? Which seeds? Which planner budget? Which episodes? Where are the failed runs? The card cannot answer.

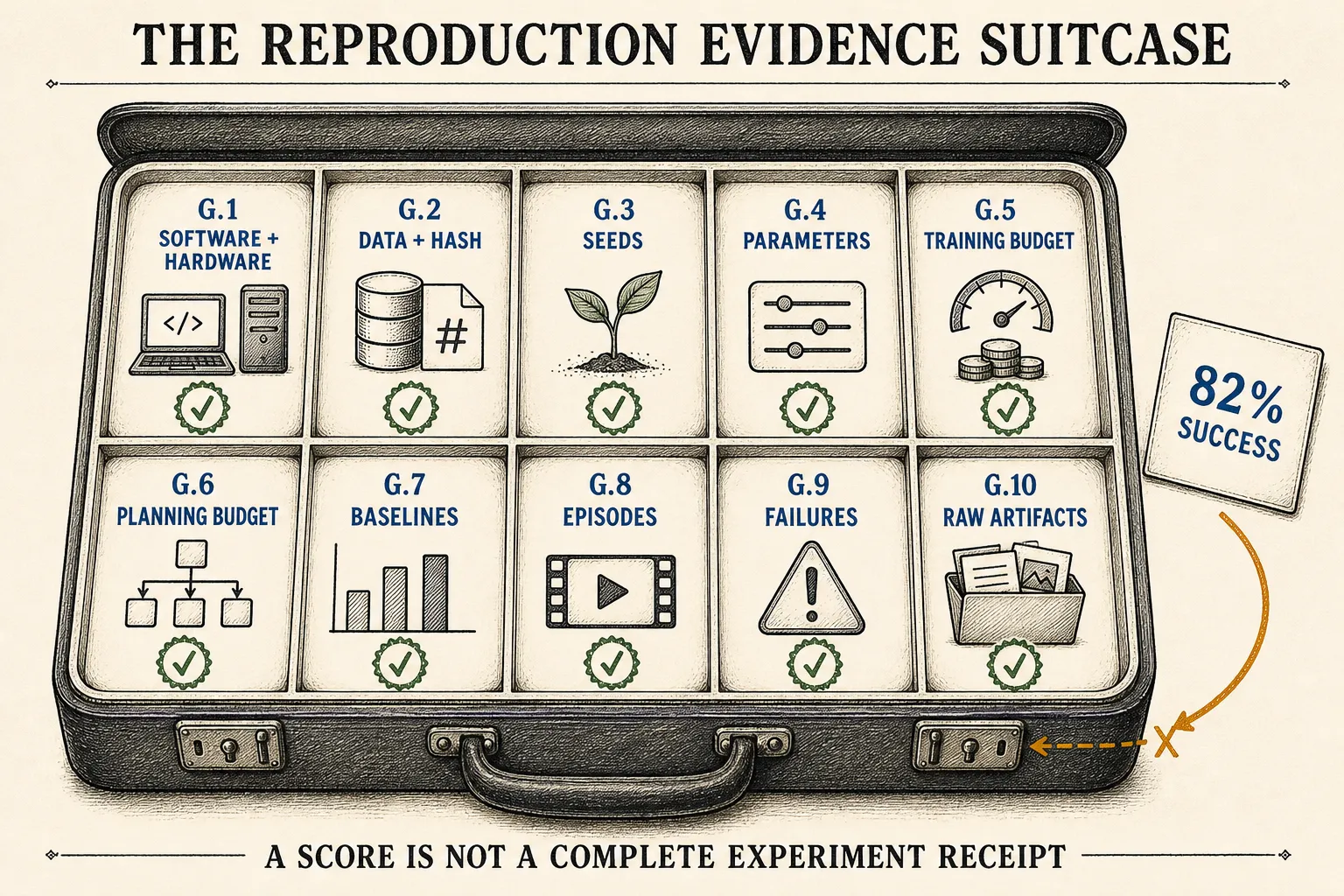

The number may be honest. It is simply not a complete experiment receipt. Use the ten compartments below before a run, during it, and before publication. A blank marked “not verified” is better than a remembered guess.

Completeness supports inspection; it does not promise bitwise identity across hardware and nondeterministic kernels.

Copyable ten-compartment run receipt

G.1 Software and hardware

• Paper/version, repository URL, exact SHA, local diff, launch command, and behavior-changing environment variables.
• OS, Python, framework, CUDA/cuDNN, GPU model/count/memory, precision, compilation/fused kernels, and deterministic settings.
• Lockfile or exported resolved environment, including first-party dependencies. LeWM core 8edfeb3 does not freeze moving stable-pretraining or stable-worldmodel by itself.
• Protocol history. Current v3 TwoRoom says goal offset/budget 25/50; the independent audit’s paper-side 100/150 belongs to older v1/v2 history.

G.2 Data identity and hash

• Artifact URI/revision, downloaded filename, cryptographic hash, license/access rule, decompression/conversion, and exact bytes consumed by the loader.
• Format, fields, crop/resize, normalization, fitted preprocessing split, frame skip/action grouping, history, window length/stride, and invalid-window rule.
• Episode IDs and episode-disjoint train/validation/test split before windowing; trace every sampled window back to one episode.
• Resolve format discrepancies explicitly: the frozen PushT YAML names Lance, while the inspected public artifact/README path is compressed HDF5/HDF5-oriented.

For the audited TwoRoom reimplementation, record dense actions across each frame-skip block, programmatic action-encoder width, ImageNet pixel normalization, and action z-scoring. Those are TwoRoom audit facts, not universal LeWM requirements.

G.3 Seeds and stochastic policy

• List seeds for split/window sampling, initialization, augmentation, dropout, loader workers, environment resets, collection policy, CEM sampling, and goal selection—or the exact derivation from a master seed.
• State remaining nondeterminism and the rule for failed/excluded runs. Keep seed identities, not only “five seeds.”
• Pair evaluation and planner seeds across variants where the comparison calls for paired noise.

G.4 Parameters and training graph

• Total/trainable parameter counts by visual backbone, projectors, action encoder, predictor, and optional heads; mark frozen and pretrained parts.
• Confirm baseline v3 identity: trainable visual encoder, connected shifted target, no EMA teacher, no pretrained visual encoder.
• Record which loss reaches which parameters. Similar totals do not mean equal architecture or prior compute.

G.5 Training budget

• Optimizer updates, batch/context sizes, data windows/exposures, epochs, optimizer/schedule, validation cadence, early stopping, precision, wall time/device-hours, and checkpoint-selection rule.
• Pretraining data/compute, or unreported—never silently zero.
• Resolve paper/code differences: named LeWM experiments report 10 epochs; the frozen global maximum is 100. Archive the composed value actually run.

G.6 Planning budget

• Candidate population, elites, refinement rounds, proposal initialization, action bounds, model horizon, environment actions per model step, executed prefix, replanning interval, total action allowance, vectorization, and per-decision latency.
• Keep this meter separate from training. Equal parameters do not equal search; equal wall time does not equal sampled actions.
• Translate clocks. In the cited frozen cards, 5 environment actions form one model step; horizon and executed prefix are both 5 model steps, so the full five-block sequence is executed before replanning.

G.7 Baselines and oracle conditions

• For every baseline: implementation/SHA, checkpoint, data/preprocessing, pretraining, capacity, training/planning budget, tuning space, and the same episode ledger.
• Label random policy, behavior cloning, oracle dynamics, and oracle cost by role. Oracles localize headroom; they are not deployable methods or proof a learned replacement is attainable.
• State whether a schedule/hyperparameter was selected before evaluation or post hoc. Retuning only the favored method is not a matched comparison.

G.8 Evaluation episodes

• Environment/task revision, episode/start/goal IDs, goal rule, count, action budget, success definition, termination/timeout/reset rules, planner seed, and failure handling.
• Reuse paired starts/goals/randomness where appropriate. Report per-seed/per-episode outcomes, uncertainty, timeouts, and goal-type strata—not only the mean.
• Freeze the episode ledger before reading the headline result.

G.9 Failures, nulls, and negatives

• Save raw successes and failures using a declared selection rule: all failures in a fixed suite, first per seed, uniform sample, or preregistered strata.
• Classify the earliest observable break: data support, collapse/missing variable, action insensitivity, one-step mismatch, self-fed drift, cost misranking, CEM miss, execution/interface error, or timeout.
• Preserve aligned frames, observations, actions, predicted diagnostics, candidate costs, selected sequence, executed prefix, and termination reason.
• Archive null and negative ablations. “No gain here” is evidence under this setup, not impossibility.

G.10 Raw archive and command record

• Source/diff, dependency lock, command, environment variables, composed configuration, data manifest/hashes, stdout/stderr, structured metrics/events, checkpoints, optimizer/scheduler/scaler/RNG state when resumption matters, episode ledger, raw predictions/actions, and analysis/figure script revision.
• README with directory map, missing-item inventory, access restrictions, and meanings of not collected, lost, private, too large, and available on request.
• Separate raw evidence (frames/actions/IDs/costs), derived evidence (tables/statistics), and presentation (cropped figures/videos), with a traceable path between them.
• Smoke-test a clean handoff: load one checkpoint, trace one window to its episode, regenerate one summary, and test training resumption separately from inference.

Try to break the receipt

Two laboratories use the same commit, seed, GPU, and checkpoint. Their losses match exactly. Then both discover the sampler deterministically paired the last frame of one episode with the first action of the next.

Reproducibility repeated the procedure; it did not make the procedure correct. Add mechanical tests for episode boundaries, target shifts, causal visibility, action sensitivity, gradient recipients, and the separation between training target and planning goal. Conversely, two correct stochastic runs may differ numerically while supporting the same distributional conclusion.

Now imagine two 80% scores. One used pretrained vision, 300 candidates, 30 refinements, five seeds, and same-trajectory goals. The other trained end-to-end, used 64 candidates, five refinements, one seed, and a broader goal split. Equal numbers are not equal experiments. Lock the receipt before comparing them.

Evidence receipt

Method identity comes from LeWorldModel v3, frozen LeWM code, first-party dependencies/artifacts, and the TwoRoom reproduction v1 with tinylab efa9e5d. LeWM v3 was revised 2026-06-03; the core commit is dated 2026-05-22; reproduction v1 appeared 2026-08-10; checklist cutoff is 2026-08-20. Independent reproduction remains TwoRoom-only. A complete checklist preserves identity and gaps; it cannot guarantee bitwise equality, repair unsupported data, or make incomparable runs fair after the fact.

Three quick questions

1. Why must training and planning budgets use separate meters?
2. What does a data hash prove, and what does it leave open?
3. Which artifacts let a stranger regenerate one result without guessing?
